Middle Atlantic RDR-S3 16U Designer Residential Rack

      MAP# RDR-S3    Questions? Email us at sales@customavrack.com

  Overview

Middle Atlantic's RDR-S3 designer rack has 16U of rack spacing and 3 vented 4-point rackmount shelves.  The RDR-S3 is factory configured by Middle Atlantic and ships with 15A surge protected power distribution and built-in cable management.  Shelves come mounted to all 4 rack rails, but can easily be removed.  Trim strip panels over all four posts and hidden caster wheels help complete the sleek designer aesthetics of the RDR racks.  Silver accent trim panels cover rackmount fasteners and look great.

   Features

• 16U of rackmount spacing

• Factory installed 4-point vented rack shelves

• Includes trim strips and hidden caster wheels

• Configured with a filtered 15A surge protector

• Attractive contoured wood top

• Very deep rackmounting allows for any A/V component
• Pre-installed cable lacing bars provide strain relief and plenty of tie points
• Shelves feature a decorative vented pattern
• Options include side panels, vented rear panel and rear access 4-fan panel

   Specifications         Click for technical details and drawings:

*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm

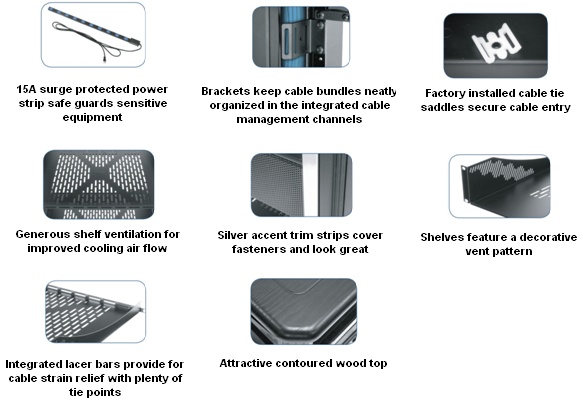

   Application Shots
