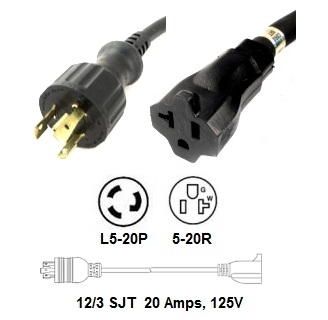

NEMA L5-20P to 5-20R Power Cords - 20 Amp, 125V
If you have questions or need a quote, please email us at sales@customavrack.com
Overview
NEMA L5-20P locking male plug to 5-20R locking power cords, rated for 20A, 125V. Insert the male plug and then twist to lock in secure power connections for important equipment such as Generators, PDU's, UPS, or servers. Call 1-800-406-8520 for quantity discounts or custom lengths.
Features
- Locking L5-20P to 5-20R power cord
- Rated for 20A, 125V
- Lengths: 3, 6, 10 foot
- Locking plug, straight blade connector
- 12/3 AWG 3-conductor wire
- Heavy-duty SJT jacket
Specifications
| Male Plug |
L5-20P
|
| Female Connector |
5-20R |
| Amperage |
20A
|
| Voltage |
125V
|
| Pins |
Locking |
| Wire Gauge |
12/3 AWG |
| Length |
3, 6, 10 Foot
|
| Color |
Black |
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJT cord made in America
Built and tested to UL standard 817
Also Known As: L5-20 5-20 Power Cord, L5-20p to 5-20R Cable, L5-20 to 5-20 Cord

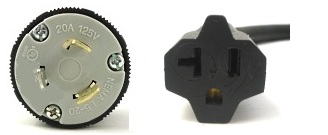

Application Shots
NEMA L5-20P NEMA 5-20R
