Save space and eliminate noise with 90 Degree right or left angle Signal Safe IEC 5-15/C13 power cords

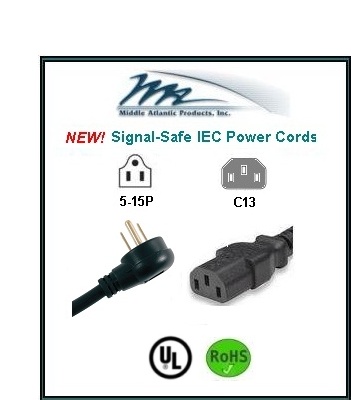

Middle Atlantic Low-Profile IEC Signal Safe Power Cables
Questions? Email us at [email protected]
Overview
Use Middle Atlantic’s 90 degree right or left angle low profile NEMA 5-15P to IEC C13 signal safe power cords to clean up installations in the back of your rack, while eliminating AC magnetic fields with their twight-twist braid design. Cords are available in 6, 12, 18, 24, 36 and 48 inch lengths, and feature either a red or blue stripe depending on model for circuit identification. Packaged in contractor packs of 20.
Features
- 90 Degree left or right NEMA 5-15P North American plug to IEC C13 connector
- Tight-twist braid style virtually eliminates inteference
- Rated for 15A
- 14/3 AWG SJT wire
- UL listed and ROHS approved
Specifications Click to view the technical PDF file:
| Male End | L/R 90° 5-15P |
| Female End | IEC C13 |
| Jacket | SJT |
| Amps | 15A |
| Wire Gauge | 14 AWG |
| Conductors | 3-wire |
| Color | Black |
| Quantity | 20 |
* SJT jacket is thicker but less flexible compared to the SVT jacket.
Application Shots
