IEC 309 420P9W to L15-20R Power Cord Plug Adapter

Adapt an L15-20P locking plug to fit an IEC 309 420P9W receptacle

Custom Length Options *

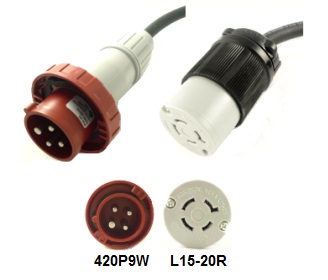

  IEC 309 420P9W to NEMA L15-20R Power Cord Adapter

   If you have questions or need a quote, please email us at [email protected]


Overview

IEC 60309 watertight pin and sleeve plug adapter with a 420P9W plug to NEMA locking L15-20R female connector, 1 Foot, rated for 20A, 250V.  Insert the male plug and then twist to lock in secure power connections.  Call for custom lengths.

l15-20 to pin and sleeve power cord


  Features

  • Pin and Sleeve 420P9W to NEMA Locking L15-20R
  • Rated for 20A, 250V
  • Custom lengths available
  • Watertight plug style
  • 10/4 AWG 4-conductor wire
  • Heavy-duty SOOW jacket

 Specifications

Male Plug                   420P9W
Female Connector           L15-20R
Amperage 20A
Voltage 250V
Pins Locking
Wire Gauge 10/4 AWG
Length 1 Foot
Color Black


Also Known As:  420P9W Pin and Sleeve Adapter, L15 20R to 420P9W power cable


 Application Shots

 iec 60309 pin and sleeve adapter

            L15-20 to 420C9W Power Cable Adapter
