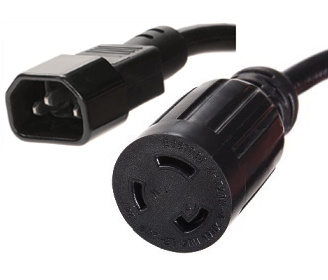

C14 to L6-20R Plug Adapter Power Cord

1 Foot pigtail allows you to plug a device with an L6-20P plug to a C13 receptacle

SKU: IBX-8810-01

IEC C14 to L6-20R Power Cords, Rated 15A/250V 14 AWG


Overview

IEC 60320 power cord with a C14 plug and L6-20R connector, rated for 15 amps, 250V.  Features a flexible 14/3 SJT jacket.  Primarily used to connect network and server equipment to a L6-20P power cord plug.


Features

  • IEC C14 male plug to L6-20R female connector
  • 1 Foot Length
  • SJT jacket
  • Rated for 15 Amps and 250 Volts
  • 14/3 AWG wire

Specifications

Plug     IEC C14
Connector NEMA L6-20R
Voltage 250V
Amps 15A
Length 1 Foot
Jacket Type 14/3 SJT
Color Black

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved

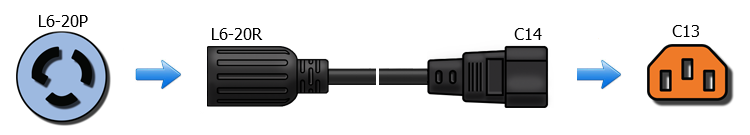

Application Shots

5-15 pc power cable
