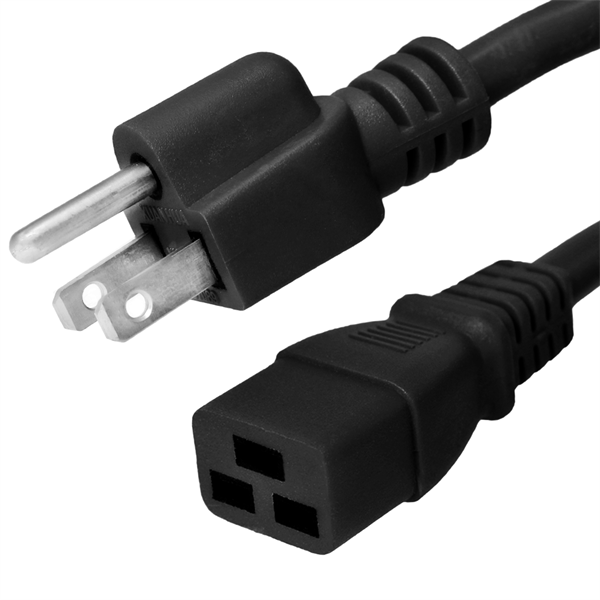

1 Foot 5-15P to C19 Power Cord – Rated 15A, 125V

Allows you to plug a device with a C19 into a NEMA 5-15R receptacle

SKU: IBX-4923-01

NEMA 5-15 Plug to IEC 60320 C19 Connector Power Cords


Overview

NEMA 5-15P power cord plugs into a standard North American 3-prong outlet.  The IEC C19 connector mates with a C20, typically found on computer and network equipment power supplies.  These 5-15P to C19 cords are 15A, 125V.


Features

  • NEMA 5-15P plug to C19 connectors
  • 1 Foot Length
  • SJT jacket
  • Rated for 15 Amps and 125 Volts
  • 14/3 AWG wire

Specifications

Plug     NEMA 5-15P
Connector IEC C19
Voltage 125V
Amps 15A
Length 1 Foot
Jacket Type 14/3 SJT
Color Black

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved
