12U x 12 in. swing-out wall mount rack
Middle Atlantic SGR-12-12 Swing Out Wall Rack
MAP# SGR-12-12 Questions? Email us at [email protected]
Overview
The SGR-12-12 is a 12U x 12 in. D open frame swing-gate wall mount rack, used for mounting small telecom and data networking systems. The SGR swings out for rear access to equipment, while the innovative design allows for punching down your rear terminations while fully open.
Features
- 12U of racking height x 12 inches of mounting depth
- Swings out for faster wiring access
- 100 lbs weight capacity
- Tie-points included for cable management
- Hook and loop wire fasteners are included
- 10-32 threaded rack rails
- Positive stop design allows punching down while open
Specifications Technical Details and Drawings:
| Overall height | 27.22 in. |
| Racking height | 21.00 in. (12U)* |
| Mounting depth | 12.00in. |
| Racking width | 19.00 in. |
| Rack rails | Front 10-32 |
| Load capacity | 100 lbs |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm

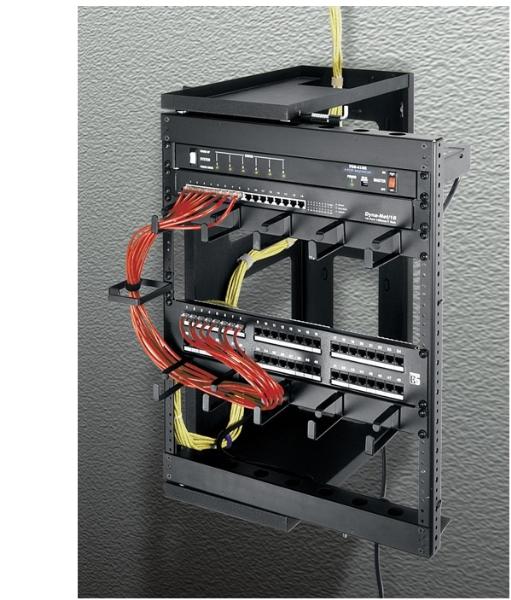

Application Shots
