Two Way Splitter Cable – L5-20P Plug to 2x C19 Connectors – 12/3, 20A, 125V

Plug two male C20 plugs into two C19 receptacles

SKU: IBX-4801C192-10

  Y Splitter Cable – NEMA L5-20P Plug to Two C19 Connectors

   Email [email protected] for quantity discounts or a quote


Overview

Splitter power cord allows you to plug two IEC C20 male plugs into a single L5-20P twist lock cable.  Cable has a 10 foot main branch on the L5-20P side, and two 2 foot C19 legs.  Rated for 20 amps, 125V.


Features

  • NEMA L5-20P plug to 2x C19 connectors
  • 10 Foot Length
  • SJT jacket
  • Rated for 20 Amps and 125 Volts
  • 12/3 AWG wire

Specifications

Plug     L5-20P
Connector C19 x 2
Voltage 125V
Amperes 20A
Length 10′ + 2′
Jacket Type 12/3 SJT
Color Black

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved

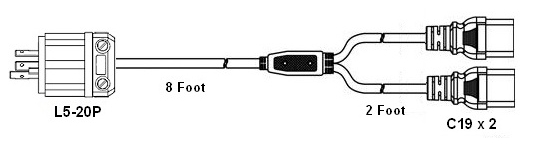

Application Shots

splitter power cord, l5-20 c19
