Two Way Splitter Cable – L5-30P Plug to 2x L5-20R Connectors – 12/3, 20A, 125V

Plug two male L5-20P plugs into twp L5-20R receptacles

SKU: IBX-5801L5202-10

  Y Splitter Cable – NEMA L5-30P Plug to Two L5-20R Connectors

   Email [email protected] for quantity discounts or a quote


Splitter power cord allows you to plug two NEMA L5-20P male plugs into a single L5-30P twist lock cable.  Cable has a 10 foot main branch on the L5-30P side, and two 2 foot L5-20R legs.  Rated for 20 amps, 125V.


  • NEMA L5-30P plug to 2x L5-20R connectors
  • 10 Foot Length
  • SJT jacket
  • Rated for 20 Amps and 125 Volts
  • 12/3 AWG wire


Plug     L5-30P
Connector L5-20R x 2
Voltage 125V
Amperes 20A
Length 10′ + 2′
Jacket Type 12/3 SJT
Color Black

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved

Application Shots

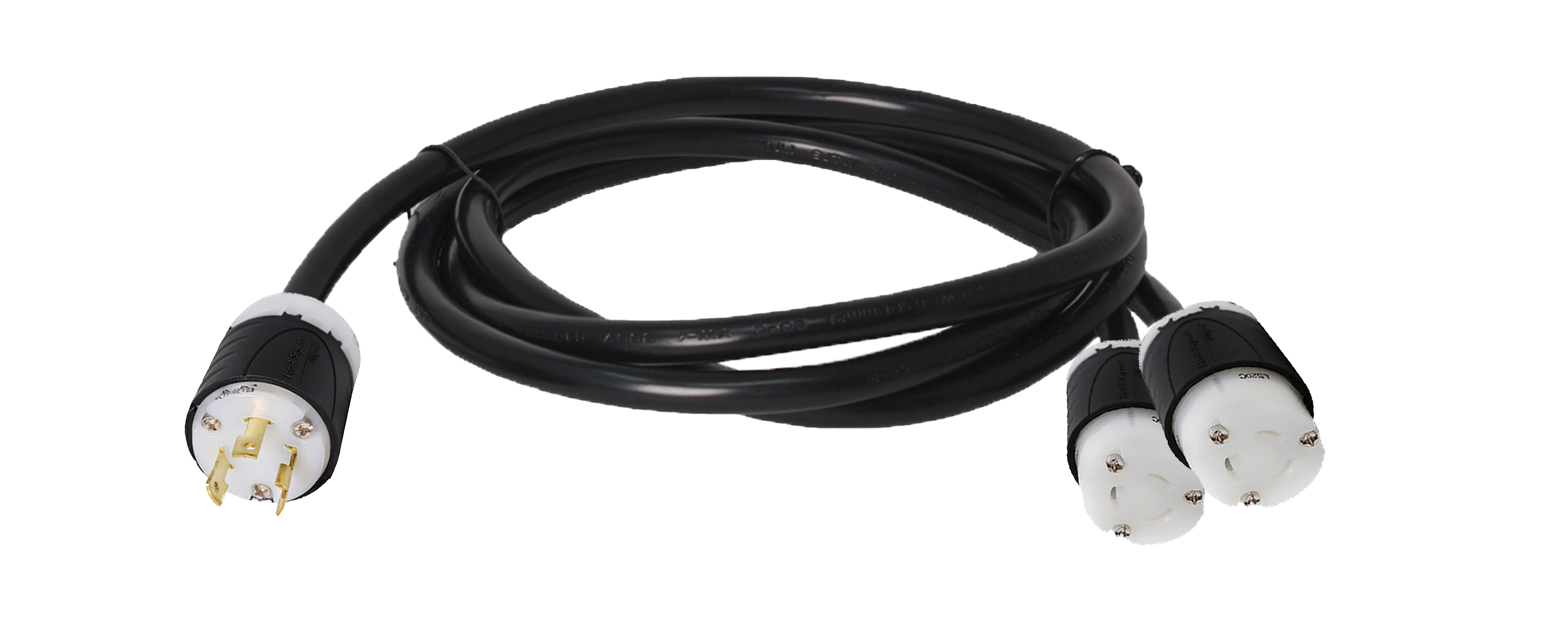

splitter power cord, l5-50 l5-20
