Two Way Splitter Cable – L6-30P Plug to 2x C13 Connectors – 14/3, 15A, 250V

Plug two male C14 plugs into two C13 receptacles

SKU: IBX-7803C132-08

  Y Splitter Cable – NEMA L6-30P Plug to Two C13 Connectors

   Email [email protected] for quantity discounts or a quote


Overview

Splitter power cord allows you to plug two IEC C14 male plugs into a single L6-30P twist lock cable.  Cable has a 6 foot main branch on the L6-30P side, and two 2 foot C13 legs. Rated for 15 amps, 250V.


Features

  • NEMA L6-30P plug to 2x C13 connectors
  • 6 Foot + 2 Foot Legs
  • SJT jacket
  • Rated for 15 Amps and 250 Volts
  • 14/3 AWG wire

Specifications

Plug     L6-30P
Connector C13 x 2
Voltage 250V
Amperes 15A
Length 8 Foot
Jacket Type 14/3 SJT
Color Black

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved


Application Shots

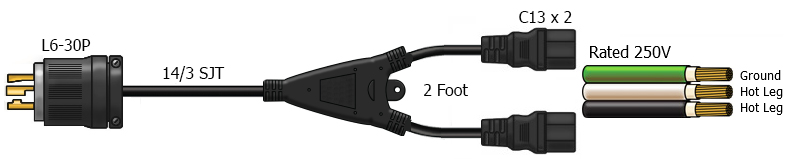

splitter power cord, l6-30 c13
