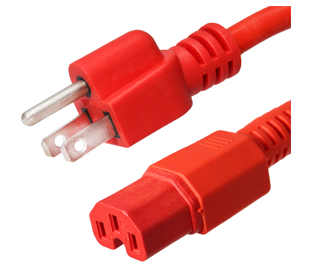

3 Foot 5-15P to C15 Power Cords, Red

Red 5-15p to IEC C15 power cord, used to connect servers to a rackmount PDU in a data center

SKU: IBX-91353-03

5-15P to C15 Power Cords, 15A, 125V, 14/3 AWG Cable Jacket, Red
5-15P to C13


Overview

NEMA 5-15P power cord plugs into a standard North American 3-prong outlet.  The IEC C15 connector mates with a C14, typically found on computer and network equipment power supplies.  These 5-15P to C15 cords are 15A, 125V.


Features

  • NEMA 5-15P plug to C15 connectors
  • 3 Foot Length
  • SJT jacket
  • Rated for 15 Amps and 125 Volts
  • 14/3 AWG wire

Specifications

Plug     NEMA 5-15P
Connector IEC C15
Voltage 125V
Amps 15A
Length 3 Foot
Jacket Type 14/3 SJT
Color Red

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved


Application Shots

5-15 pc power cable
