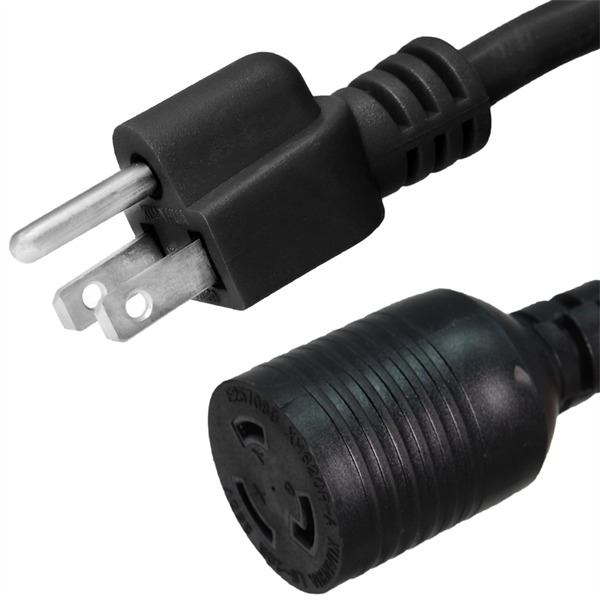

5-15P to L5-20R Plug Adapter Power Cord

5-15P plug adapters allow you to plug devices with an L5-20P plug into a 5-15R outlet.

SKU: IBX-5503-01

 NEMA 5-15P Power Cord Plug Adapters

   If you have questions or need a quote, please email us at [email protected]


Overview

Use a 5-15P plug adapter to plug an electronic device with an L5-20P plug on its power cord into a standard 5-15R 3-Prong outlet or receptacle.  Made with heavy duty SJT cord and industrial data-center grade plugs and connectors.  Call 1-800-406-8520 for custom lengths.

5-15P to L5-30 adapter


  Features

  • NEMA 5-15P plug to the following connectors:
    • L5-20R
  • 1 foot length
  • Rated for 15A, 125V
  • Straight blade style plug
  • 14/3 AWG 3-conductor wire
  • Heavy-duty SJT jacket

 Specifications

Male Plug                   5-15P
Female Connector    L5-20R
Amperage 15A
Voltage 125V
Pins Straight Blade
Wire Gauge 14/3 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/receptacle allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJTcord made in America
Built and tested to UL standard 817

Aka: 5-15P plug adapter, 5-15 to L5-20

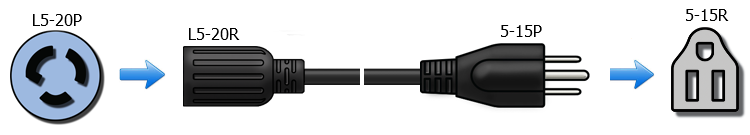

 Application Shots

5 15 to l5 30 adapter
