6-15P plug adapters allow you to plug devices with an L14-30P plug into a 6-15R outlet

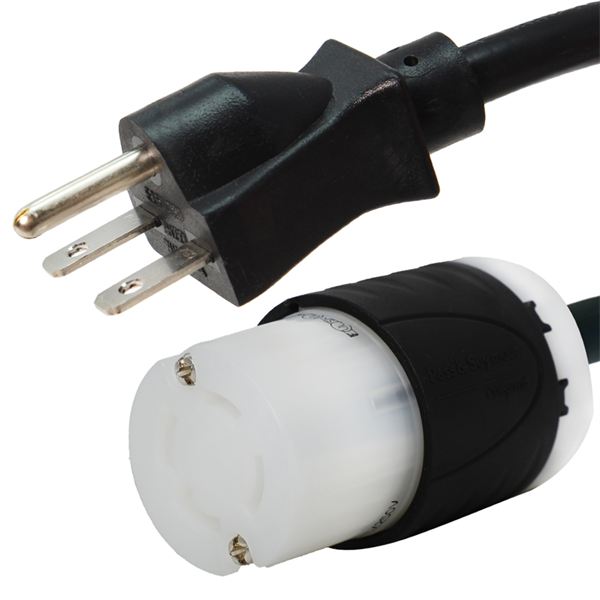

NEMA 6-15P Power Cord Plug Adapters – 15A, 250V
If you have questions or need a quote, please email us at [email protected]
Overview
Use a 6-15P pigtail power adapter to plug an electronic device with a L14-30 power plug on its power cord into a standard 6-15 power strip or wall outlet. Uses heavy-duty commercial grade wiring devices and 14/3 SJT wire. Please call 1-800-406-8520 for custom lengths.
.jpg){kind=small}
Features
- NEMA 6-15P plug to the following connectors:
- L14-30R
- 1 foot length (customs available)
- Rated for 15A, 250V
- Straight blade style
- 14/3 AWG wire
- Heavy-duty SJT jacket
Specifications
| Male Plug | 6-15P |
| Female Connectors | L14-30R |
| Amperage | 15A |
| Voltage | 250V |
| Pins | Straight Blade |
| Wire Gauge | 14/3 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/receptacle allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817
Aka: NEMA 6-15P plug adapter, 6-15 to L14-30, 6-15P to L14-30R adapter

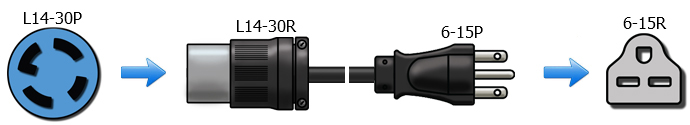

Application Shots
 copy.jpg)
