5-20P to L5-30R Plug Adapter Power Cord

5-20P plug adapters allow you to plug devices with an L5-30P plug into a 5-20R outlet

SKU: IBX-1336-01

  NEMA 5-20P Plug Adapters – 20A, 125V

   If you have questions or need a quote, please email us at [email protected]


Overview

Use a 5-20P pigtail power adapter to plug an electronic device with an L5-30P power plug on its power cord into a standard 5-20R power strip or outlet.  Made with industrial industrial grade plugs and connectors and heavy-duty SJT jacket.

5-20p nema adapter


  Features

  • NEMA 5-20P plug to the following connectors:
    • L5-30R
  • 1 foot length
  • Rated for 20A, and 125V
  • Straight blade style
  • 12/3 AWG wire
  • Heavy-duty SJT jacket

 Specifications

Male Plug                   5-20P
Female Connectors      L5-30R
Amperage 20A
Voltage 125V
Pins Straight Blade to Locking
Wire Gauge 12/3 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/receptacle allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: NEMA 5-20P to L5-30R Adapter, 5-20P to L5-30R Adapter

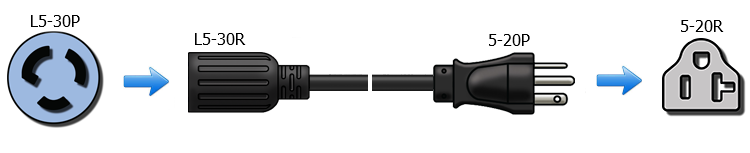

 Application Shots

5-20p to l5-30r
