6-20P to L6-15R Plug Adapter Power Cord

6-20P plug adapters allow you to plug devices with an L6-15P plug into a 6-20R outlet

SKU: IBX-8685-01

  NEMA 6-20P Power Cord Plug Adapters – 15A, 250V

   If you have questions or need a quote, please email us at [email protected]


Overview

Use a 6-20P pigtail power adapter to plug an electronic device with an L6-15P power plug on its power cord into a standard 6-15R outlet or receptacle.  Uses heavy-duty commercial grade plugs and connectors and heavy-duty SJT jacket.  Call 1-800-406-8520 for custom lengths.

nema 6-20p adapters


  Features

  • NEMA 6-20P plug to the following connectors:
    • L6-15R
  • 1 foot length
  • Rated for 15A, 250V
  • Straight blade style plug
  • 14/3 AWG wire
  • Heavy-duty SJT jacket

 Specifications

Male Plug                   6-20P
Female Connectors      L6-15R
Amperage 15A
Voltage 250V
Pins Straight Blade
Wire Gauge 14 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/receptacle allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: 6-20P to L6-15R, 6-20 to L6-15 pigtail adapter, NEMA 6-20 to Locking

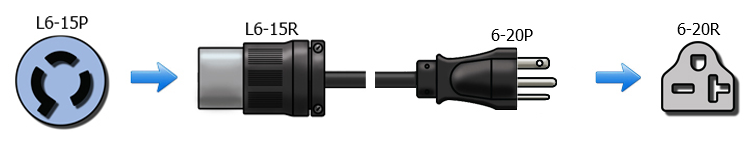

 Application Shots

6 20 to locking adapters
