L5-15P to L5-20R Plug Adapter Power Cord

L5-15P plug adapters allow you to plug devices with a L5-20 plug into a L5-15R outlet

SKU: IBX-3520-01

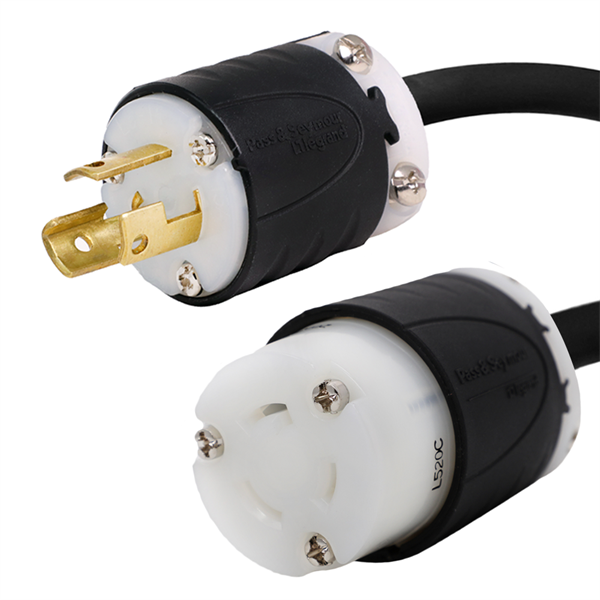

 NEMA L5-15P Power Cord Plug Adapters – 15A, 125V

  If you have questions or need a quote, please email us at [email protected]


Overview

Use a L5-15P pigtail power adapter to plug an electronic device with a L5-20 plug on its power cord into a locking L5-15R power strip or wall outlet.  1 Foot length, 14 AWG SJT wire.  Uses heavy-duty commercial grade twist locking plugs and connectors.  Call 1-800-406-8520 for custom lengths.

l5-15p adapter


  Features

  • NEMA L5-15P plug to the following connectors:
    • L5-20R
  • 1 foot length (call or email for custom lengths)
  • Rated for 15A/125V
  • Locking plug style
  • 14/3 AWG 3-conductor wire
  • Heavy-duty SJT jacket

 Specifications

Male Plug                   L5-15P
Female Connectors      L5-20R
Amperage 15A
Voltage 125V
Pins Locking
Wire Gauge 14/3 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/receptacle allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: L5-15P top L5-20R, L5-15P to L5-20R Adapter

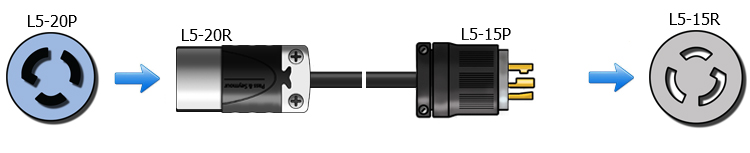

 Application Shots
