L5-20P to L14-30R Plug Adapter Power Cord

1 foot L5-20P plug adapters allow you to plug devices with a L14-30P plug into a L5-20R outlet

SKU: IBX-0553-01

 NEMA L5-20P Power Cord Plug Adapters – 20A, 125V

 If you have questions or need a quote, please email us at [email protected]


 Overview

Use a L5-20P pigtail power adapter to plug an electronic device with an L14-30 plug on its power cord into a locking L5-20R power strip or wall outlet.   Features industrial grade locking plugs and connectors and heavy-duty SJOOW oil and water resistant power cord.

l5-20p adapter


  Features

  • NEMA L5-20P plug to the following connectors:
    • L14-30R
  • 1 foot length
  • Rated for 20A and 125V
  • Straight blade style
  • 12/3 AWG 3-conductor wire
  • Heavy-duty SJOOW jacket

 Specifications

Male Plug                   L5-20P
Female Connectors      L14-30R
Amperage 20A
Voltage 125V
Pins Locking
Wire Gauge 12 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/socket allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: L5-20P pigtail adapter, L5-20P to L14-30R plug adapter, Adapt to L5-20

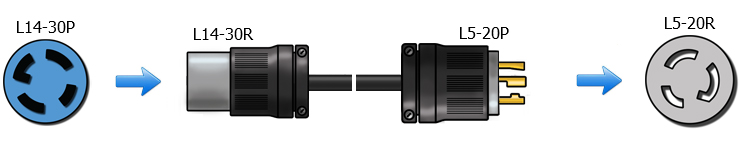

 Application Shots
