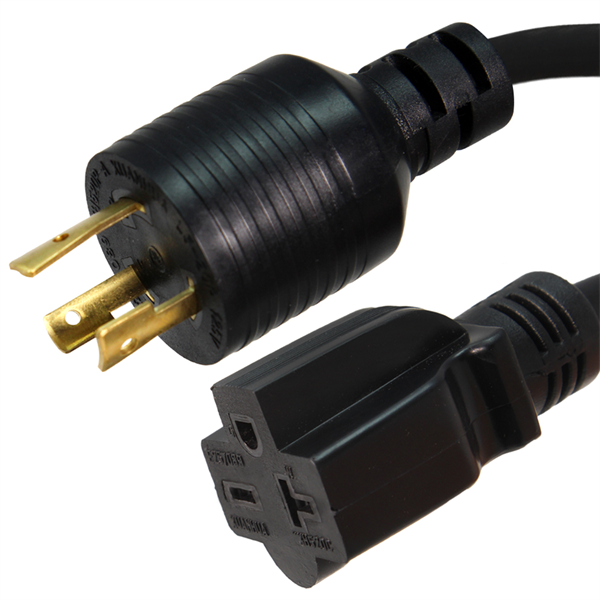

L6-20P to 6-15/20R Plug Adapter Power Cord

1 foot L6-20P plug adapters allow you to plug devices with an 6-15P or 6-20P plug into a L6-20R outlet

SKU: IBX-1816-01

 NEMA L6-20P Power Cord Plug Adapters – 20A, 250V

   If you have questions or need a quote, please email us at [email protected]


Overview

Use a L6-20P pigtail power adapter to plug an electronic device with a 6-15 or 6-20 power plug on its power cord into a locking L6-20R power strip or wall outlet.  Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJOOW cable.

plug adapter l6 20p


  Features

  • NEMA L6-20P plug to the following connectors:
    • 6-15/20R
  • 1 foot length
  • Rated for 20 Amps, 250V
  • Locking style
  • 12/3 AWG 3-conductor wire
  • Heavy-duty SJT jacket

Specifications

Male Plug                   L6-20P
Female Connectors      6-15-20R
Amperage 20 Amps
Voltage 250V
Pins Locking
Wire Gauge 12 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/socket allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: L6-20P to 6-15R plug adapter, L6-20 6-15/20 pigtail, Adapt an L6-20 plug

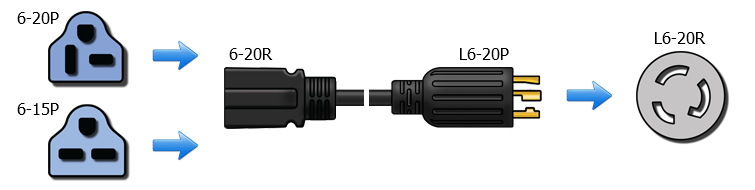

 Application Shots

nema l6-20p
