L5-30P to L14-30R Plug Adapter Power Cord

L5-30P plug adapters allow you to plug devices with an L14-30 plug into a L5-30R outlet

SKU: IBX-3537-01

 NEMA L5-30P Power Cord Plug Adapters

   If you have questions or need a quote, please email us at [email protected]


Overview

Use an L5-30P pigtail power adapter to plug a device with an L14-30P into a device with an L5-30R power strip receptacle or wall outlet.  Uses heavy-duty commercial grade cord ends, and SJOOW water and oil resistant cord.

l5-30 adapter cord


  Features

  • NEMA L5-30P plug to the following connectors:
    • L14-30R
  • 1 foot length
  • Rated for 30A
    Locking plug style
  • 10/3 AWG wire
  • Heavy-duty water and oil resistant SJOOW jacket

Specifications

Male Plug                   L5-30P
Female Connectors                                   L14-30R
Amperage 30A
Voltage 125V
Pins Locking
Wire Gauge 10/3 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/socket allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: NEMA L5-30P pigtail adapter, L5-30 power cord adapters

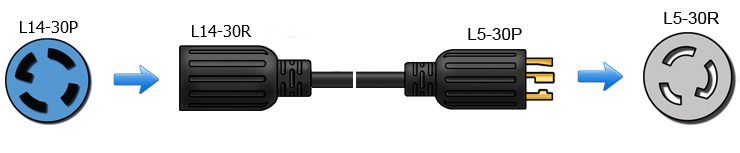

 Application Shots

nema l5-30p to l5-20
