L21-30P to 6-20R Plug Adapter Power Cord

NEMA L21-30P to 6-20R Power Adapter Cables

SKU: IBX-5153-01

 NEMA L21-30P Power Cord Plug Adapters – 20A, 208V

   If you have questions or need a quote, please email us at [email protected]


   Overview

Convert a NEMA locking 6-20P plug to fit a NEMA L21-30 Locking receptacle. Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJOOW cable.

plug adapter l6 20p


  Features

  • NEMA L21-30P plug to the following connectors:
    • 6-20R
  • 1 foot length
  • Rated for 20 Amps, 208V
  • Locking style
  • 12/3 AWG 3-conductor wire
  • Heavy-duty SJT jacket

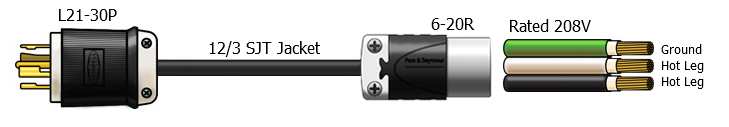

 Specifications

Male Plug                   L21-30P
Female Connectors    6-20R
Amperage 20 Amps
Voltage 208V
Pins Locking
Wire Gauge 12 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/socket allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America

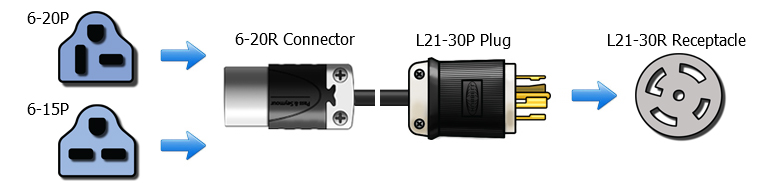

 Application Shots

nema l6-20p
