L21-30P to L6-30R Plug Adapter Power Cord

NEMA L21-30P to L6-30R Power Adapter Cables

SKU: IBX-90773-01

 NEMA L21-30P Power Cord Plug Adapters – 30A, 208V

   If you have questions or need a quote, please email us at [email protected]


   Overview

Convert a NEMA locking L6-30P plug to fit a NEMA L21-30 Locking receptacle. Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJOOW cable.

plug adapter l6 20p


  Features

  • NEMA L21-30P plug to the following connectors:
    • L6-30R
  • 1 foot length
  • Rated for 30 Amps, 208V
  • Locking style
  • 10/3 AWG 3-conductor wire
  • Heavy-duty SJT jacket

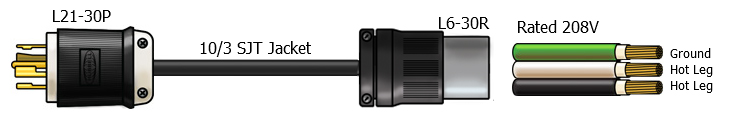

 Specifications

Male Plug                   L21-30P
Female Connectors    L6-30R
Amperage 30 Amps
Voltage 208V
Pins Locking
Wire Gauge 10 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/socket allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

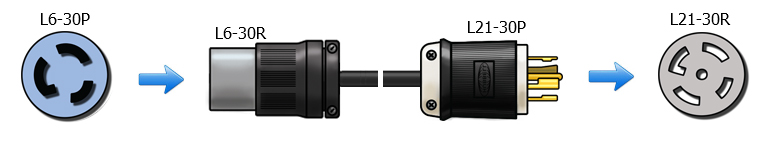

 Application Shots

nema l6-20p
