L14-20P to L5-15R Plug Adapter

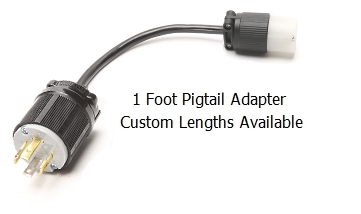

1 Foot power cord plug adapter allows you to plug a device with a L5-15P plug into a L14-20R receptacle

SKU: IBX-0109-01

 NEMA L14-20P Power Cord Plug Adapters – 15A, 125V

   If you have questions or need a quote, please email us at [email protected]


   Overview

Convert a NEMA locking L5-15P plug to fit a NEMA L14-20 Locking receptacle. Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJT cable.

plug adapter l6 20p


  Features

  • NEMA L14-20P plug to the following connectors:
  • L5-15R
  • 1 foot length
  • Rated for 15 Amps, 125V
  • Locking style
  • 14/3 AWG 3-conductor wire
  • Heavy-duty SJOOW jacket

 Specifications

Male Plug                   L14-20P
Female Connectors    L5-15R
Amperage 15 Amps
Voltage 125V
Pins Locking
Wire Gauge 14 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/socket allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

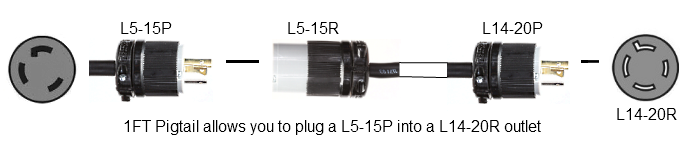

 Application Shots
