1 Foot power cord plug adapter allows you to plug a device with a L6-20P plug into a L14-20R receptacle
NEMA L14-20P Power Cord Plug Adapters – 20A, 250V
.jpg)
If you have questions or need a quote, please email us at [email protected]
Overview

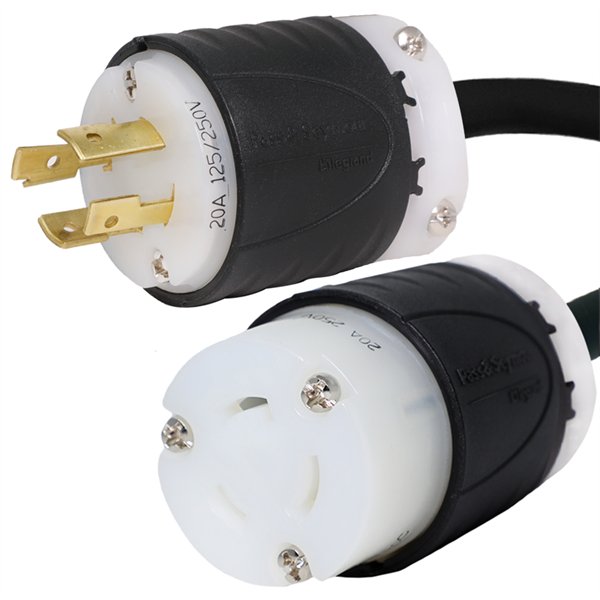

Convert a NEMA locking L6-20P plug to fit a NEMA L14-20 Locking receptacle. Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJT cable.
.jpg){kind=small}
Features
- NEMA L14-20P plug to the following connectors:
- L6-20R
- 1 foot length
- Rated for 20 Amps, 250V
- Locking style

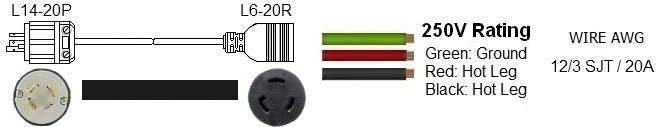

- 12/3 AWG 3-conductor wire
- Heavy-duty SJT jacket
Specifications
| Male Plug | L14-20P |
| Female Connectors | L6-20R |
| Amperage | 20 Amps |
| Voltage | 250V |
| Pins | Locking |
| Wire Gauge | 12 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/socket allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

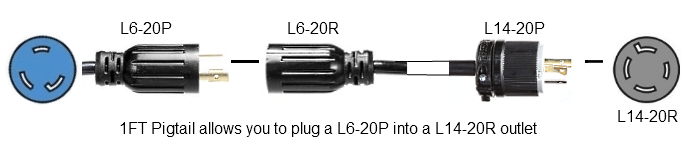

Application Shots
.png)
