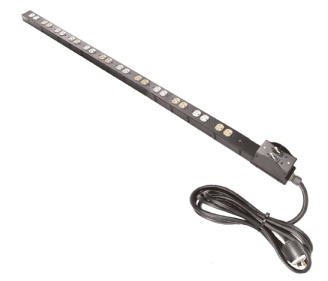

Middle Atlantic PD-2X1215TL-30CB

15a high-density vertical power strip from Middle Atlantic PD-2X1215TL-30CB – Outlets = 5-15R x 24, L5-30P on 9.5 foot cord.

Middle Atlantic PD-2X1215TL-30CB High Density PDU

   Middle Atlantic Rack Mount Products    MAP# PD-2X1215TL-30CB    Questions? Email us at [email protected]


Mount the PD-2X1215TL-30CB vertically to a rack rail in a standard data or audio/video cabinet. Rackrail bracket mounting hardware is included.



  • Twentyfour NEMA 5-15R female receptacle/outlets (12 duplexes)
  • Two 15 AMP circuit breaker fed by a 30 Amp branch circuit
  • 9.5 foot power cord with standard NEMA L5-30P locking male plug
  • Frame is black, outlets alternate between ivory and white
  • Color of outlets indicate circuits
  • “quick-clip” fast-mounting bracket system
  • UL listed

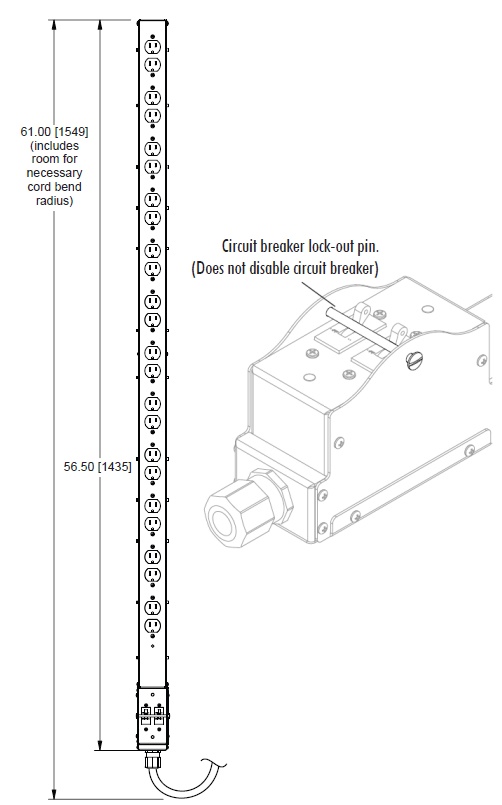

     Specifications        Technical Details and Drawings:

Outlets 24 NEMA 5-15R
Circuit protection Two 15 Amp Breakers
Cord/Plug 9.5′ NEMA L5-30P
Overall Lenth 60 inches
Chassis Anodized Aluminum Vertical Mount


     Application Shots
