Middle Atlantic PDLT-815RV-RN

15A/115V horizontal rackmount power and lighting distribution unit from Middle Atlantic. PDLT-815RV-RN – Outlets: 5-15R x 8 located in rear, a retractable lighting panel, 5-15P on 9 foot cord. Flat black powder coat finish.

Optional Components

  Middle Atlantic PDLT-815RV-RN PDU with Lighting

   Middle Atlantic Rack Mount Products    MAP# PDLT-815RV-RN    Questions? Email us at [email protected]


Mount the PDLT-815RV-RN horizontally to a rack rail in a standard data or audio/video cabinet. Retractable lighting panel illuminates components. Featuring power distribuition with 8 rear NEMA 5-15 outlets and 2 USB outlets. Includes surge suppression and EMI filtering.



  • Retractable lighting shelf
  • Shelf has 20 lbs weight capacity
  • Eight NEMA 5-15R female receptacle/outlets
  • 2 USB ports – powers optional gooseneck work lighting
  • 15 AMP circuit breaker
  • Front panel dimmer knob for lighting control
  • Includes surge suppression and EMI filtering
  • Occupies 1RMU
  • 9 foot power cord with standard NEMA 5-15P male 3-prong plug
  • UL listed
  • Flat black powder coated finish

     Specifications       Technical Details and Drawings:

Outlets 8 NEMA 5-15R
Outlet location Rear
Amperage 15 Amp
Voltage 115 Volts
Circuit protection (1) 15 Amp Circuit Breaker
Cord/Plug 9′ NEMA 5-15P
Construction 18-gauge Steel
Finish Flat  Black Powdercoat

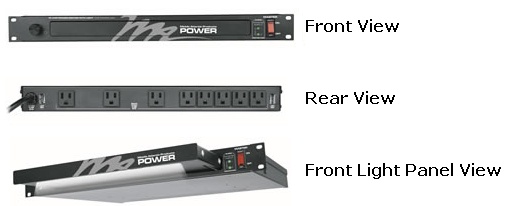

    Application Shots
